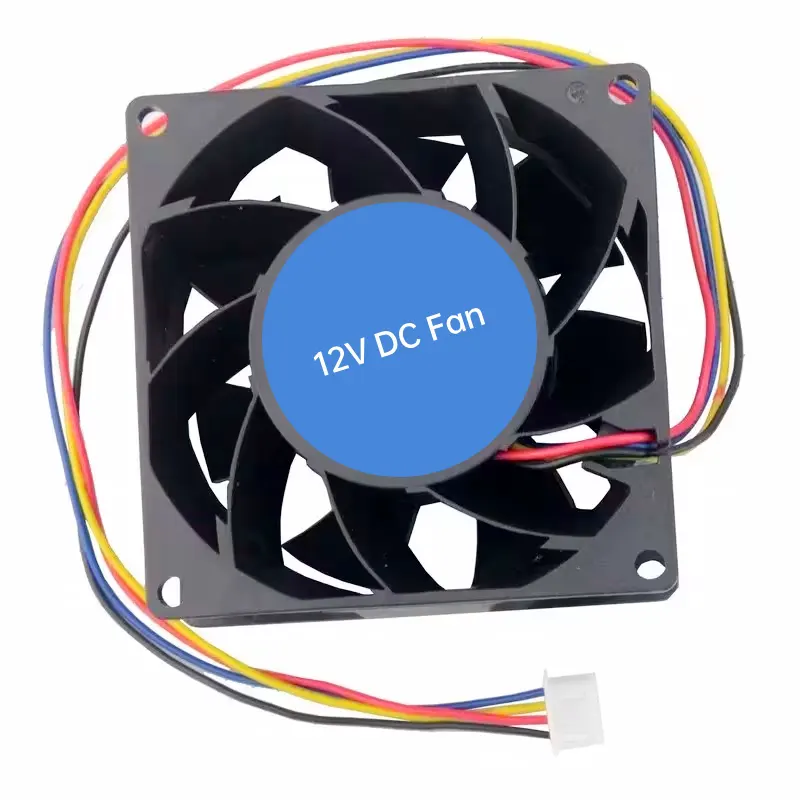

12V DC Fan for Industrial Equipment & Electronic Cooling Systems
Designed for stable airflow performance in industrial environments, our 12V DC fan is widely used in control cabinets, automation systems, power electronics, and compact machinery requiring reliable thermal management.
Why Choose a 12V DC Fan?
12V is the go-to voltage for countless applications — from desktop electronics to industrial automation. Our 12V brushless fans deliver reliability, efficiency, and precise thermal management.
3D Printers
12V fans directly powered by printer mainboards. Perfect for extruder cooling, part cooling, and control board ventilation. Reliable, low-noise options available.
IT & Networking
Switches, routers, NAS, servers – 12V axial fans ensure continuous airflow in high-density environments. PWM models allow dynamic speed adjustment.
Industrial Automation
PLC cabinets, drives, HMI panels – 12V safety voltage reduces complexity. Dual ball bearing versions for long life in harsh conditions.
Power & Energy
Inverters, battery chargers, UPS systems – 12V cooling fans provide efficient heat dissipation with low power consumption.
12V DC Fan Series
The 12V AC axial fan is engineered for industrial cooling applications requiring compact structure, low noise, and continuous operation. It is commonly used in electrical enclosures and automation equipment where thermal stability directly affects system reliability and service life.
1. Choose Size
Measure mounting space: 20mm to 120mm. Larger size moves more air at lower noise.
2. Define Airflow
High heat load → higher CFM or larger frame. For silent operation, oversize and reduce speed.
3. Select Features
PWM for speed control, tachometer for speed monitoring, IP54/IP68 for wet/dusty environments.
4. Bearing Type
Dual ball bearing: longer life (70k hrs), high temp. Sleeve bearing: lower cost, quieter for horizontal use.
12V DC Fan Specifications & Quality
Electrical
- Rated voltage: 12V DC
- Operating range: 7V – 13.8V
- Brushless DC motor
- Polarity protection
Mechanical
- Frame: PBT UL94V-0
- Impeller: PBT or PA66
- Connection: 2/3/4 wires, custom
- IP rating: up to IP68
Reliability
- Life: 70,000 hrs (ball bearing)
- 100% balancing test
- UL / CE / RoHS / TÜV
- 72h burn-in sampling
Custom 12V DC Fan Solutions
Standard 12V fan not 100% matching your design? We offer full OEM/ODM/OBM services to tailor every detail: speed curve, connector, waterproofing, and even frame modifications.
Wire length & terminal
PWM / Tach / FG signal
IP54 / IP68 protection
Custom voltag
MOQ flexible for samples and mass production. Engineering support for quick turnaround.
DC Fan Series
Fan
Model
Size
(mm)
Voltage
(VAC)
Power
(W)
Speed
(RPM)
Airflow
(CFM)
Certifications of Brushless DC Fans
FAQ of 12V DC Fan
What are the key advantages of using a Brushless DC (BLDC) fan?
As a professional dc brushless fan manufacturer, we utilize BLDC technology because it offers significantly higher efficiency, reduced electromagnetic interference (EMI), and a much longer lifespan (up to 70,000 hours) compared to brushed motors. They are the industry standard for reliable, continuous cooling in telecommunications and industrial cabinets.
How do I choose between a 12V and a 24V DC fan?
The choice depends entirely on your system’s power supply.
-
12 Volt DC axial fans are standard for automotive, consumer electronics, and smaller networking gear.
-
24V DC fans are more common in industrial automation and PLC control cabinets. Always ensure the voltage matches your power source to avoid motor burnout or insufficient RPM.
Can LINKWELL provide custom 12V DC fans (OEM/ODM)?
Yes. As a leading oem 12 volt dc axial fans manufacturer, we offer full customization. This includes custom wire lengths, specific connectors (2-pin, 3-pin PWM, 4-pin), and specialized ingress protection (IP55 or IP68) for outdoor or dusty environments.
What does the "92x92x25mm" size signify in fan specifications?
This refers to the outer dimensions of the fan housing. A 92x92x25mm dc axial fan is one of the most common industrial sizes. The first two numbers (92×92) represent the frame width and height, while the last (25mm) represents the thickness. When replacing a fan, always measure the outer frame, not the blades.
Are your 12V DC fans compliant with international safety standards?
As a high quality dc axial cooling fan manufacturer, all LINKWELL products are manufactured in ISO9001 certified facilities and comply with UL, CE, TUV, and RoHS standards, ensuring they meet global safety and environmental requirements for export.
Do you offer wholesale pricing for bulk orders?
Yes, we are a wholesale 12 volt dc axial fans manufacturer. We provide tiered pricing based on volume to support distributors and large-scale industrial projects. Contact our sales team for a formal quote based on your annual requirements.
