24V 4010 Ball Bearing Fan 40x40x10mm
High‑reliability cooling for compact electronics, telecom, and industrial controls. 50,000+ hours L10 lifespan, PWM/FG options, and full certification.
Technical specifications
24V 4010 Ball Bearing Fan – Key parameters
| Parameter | Specification |
|---|---|
| Model Series | LKA-4010B-24 (AC) / LKE-4010B-24 (EC) / LKD-4010B-24 (DC) |
| Dimensions | 40 × 40 × 10 mm (1.57 x 1.57 x 0.39 in) |
| Rated Voltage | 24V DC (18–27.6V operating range) |
| Current | 0.08 – 0.18 A |
| Airflow | 6 – 12 CFM (0.17 – 0.34 m³/min) |
| Static Pressure | 2.5 – 5.2 mmH₂O |
| Noise Level | 22 – 35 dBA |
| Speed Range | 5000 – 9500 RPM |
| Bearing Type | Dual ball bearing (NSK/NMB grade) |
| Life Expectancy | 50,000 hours L10 at 25°C |
| Operating Temperature | -20°C ~ +70°C (optional -40°C) |
| Certifications | UL, CE, RoHS, REACH, ISO9001 |
Optional features
- PWM speed control (4-wire, duty cycle 0~100%)
- Tachometer (FG) signal – real‑time RPM feedback
- Locked rotor sensor (RD alarm)
- IP54 / IP56 protection (dust/water resistant)
- Custom cable length & connector (JST, Molex, etc.)
- Conformal coating for humidity/corrosive environments
- Custom voltage/current & OEM welcome
Compact size, industrial reliability
40x40x10mm is the go‑to solution for space‑constrained electronics that still demand long life and stable cooling.
50,000+ hours lifespan
Dual ball bearings ensure stable operation for years in 24/7 applications.
Wide temperature range
Performs from -20°C to +70°C, suitable for outdoor cabinets and industrial zones.
24V standard for industrial control
24V DC is widely used in PLC, drives, telecom, and security equipment.
Typical applications for 4010 24V fans
Telecom & networking
Routers, switches, base station modules – 24V rail and compact cooling.
3D printers & small appliances
Hotend cooling, control box ventilation, low noise variants available.
Medical devices
Diagnostic equipment, patient monitors – safety certified, low vibration.
Power supplies & converters
High‑density PSU, DC-DC modules – reliable 24V cooling.
Industrial controls
PLC, servo drives, HMI panels – long life and wide temp operation.
EV / battery systems
Battery management systems, onboard chargers.
Available models: LKD (DC) / LKE (EC) / LKA (AC)
| Series | Type | Airflow (CFM) | Noise (dBA) | RPM | PWM/FG | Life (hrs) |
|---|---|---|---|---|---|---|
| LKD4010B-24L | DC ball bearing | 6.2 | 22 | 5500 | Optional | 50,000 |
| LKD4010B-24M | DC ball bearing | 8.5 | 28 | 7000 | Optional | 50,000 |
| LKD4010B-24H | DC ball bearing | 11.5 | 35 | 9200 | PWM + FG (Standard) | 50,000 |
| LKE4010B-24E | EC (energy saving) | 10.2 | 31 | 8500 | 0-10V / PWM | 60,000 |
Fan
Model
Size
(mm)
Voltage
(VAC)
Power
(W)
Speed
(RPM)
Airflow
(CFM)
Fan
Model
Size
(mm)
Voltage
(VAC)
Power
(W)
Speed
(RPM)
Airflow
(CFM)
Fan
Model
Size
(mm)
Voltage
(VAC)
Power
(W)
Speed
(RPM)
Airflow
(CFM)

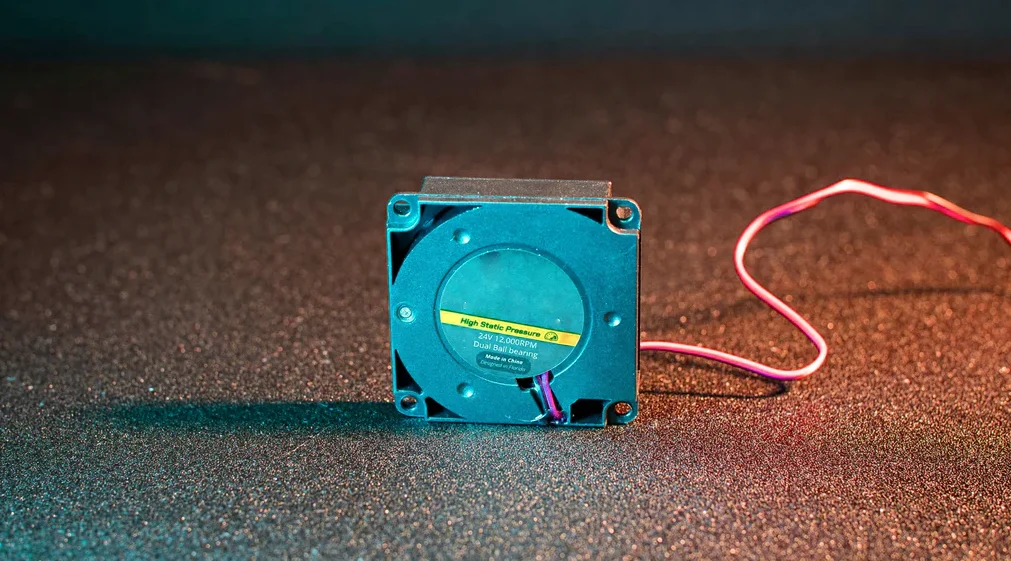

Tailored 24V 4010 fans for your exact need
- Custom voltage (12V/24V/48V) – same 4010 frame
- Connector & wire length: JST, Molex, custom pin assignment
- Special coating (anti‑humidity, anti‑salt)
- Private label packaging & logo printing
- Speed marking / special barcode labels
Engineering support
From prototype to mass production: our team provides 3D drawings, thermal simulation, and validation samples within 7‑10 days.
- Factory capacity: 10k–50k units/month · Fast JIT delivery.
Common cooling fan dimensions (mm)
| Code | W×L (mm) | Thickness (mm) | Typical Applications |
|---|---|---|---|
| 4010 | 40×40 | 10 | Small power, 3D printers, network switches |
| 4020 | 40×40 | 20 | Servers, telecom modules |
| 4028 | 40×40 | 28 | High-performance servers, GPU |
| 5015 | 50×50 | 15 | Compact industrial equipment |
| 6015 | 60×60 | 15 | Power supplies, projectors |
| 6025 | 60×60 | 25 | Industrial controls, UPS |
| 7015 | 70×70 | 15 | Slim devices, LED lighting |
| 8025 | 80×80 | 25 | Servers, VFD, general industrial |
| 9225 | 92×92 | 25 | Servers, telecom base stations |
| 12025 | 120×120 | 25 | Industrial cabinets, EV chargers |
| 12038 | 120×120 | 38 | High pressure, rugged cooling |
| 14025 | 140×140 | 25 | Thin industrial equipment |
| 14038 | 140×140 | 38 | High airflow, HVAC, inverters |

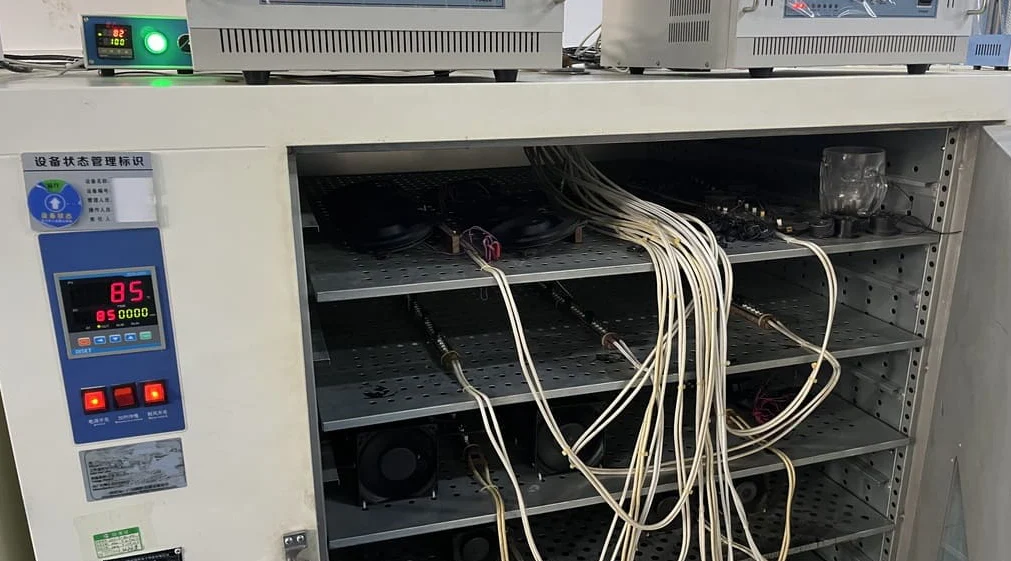

100% burn‑in tested
Every 24V 4010 fan runs 4~24 hours before shipment. Full electrical, noise, and vibration check.
Global logistics
Samples in 3‑7 days · Bulk order 15‑25 days · DHL / FedEx / sea freight.
1. Incoming Material Inspection
Bearings, PCBs, ICs, wires, and frames are inspected upon arrival. Non-conforming materials are rejected before production starts.
2. In-Process Quality Control
During assembly, operators check soldering quality, impeller balance, and insulation resistance at key checkpoints.
3. 100% Burn-In Test
Every single fan runs continuously for 4 to 24 hours under rated voltage. This stabilizes the bearing and reveals any early failures.

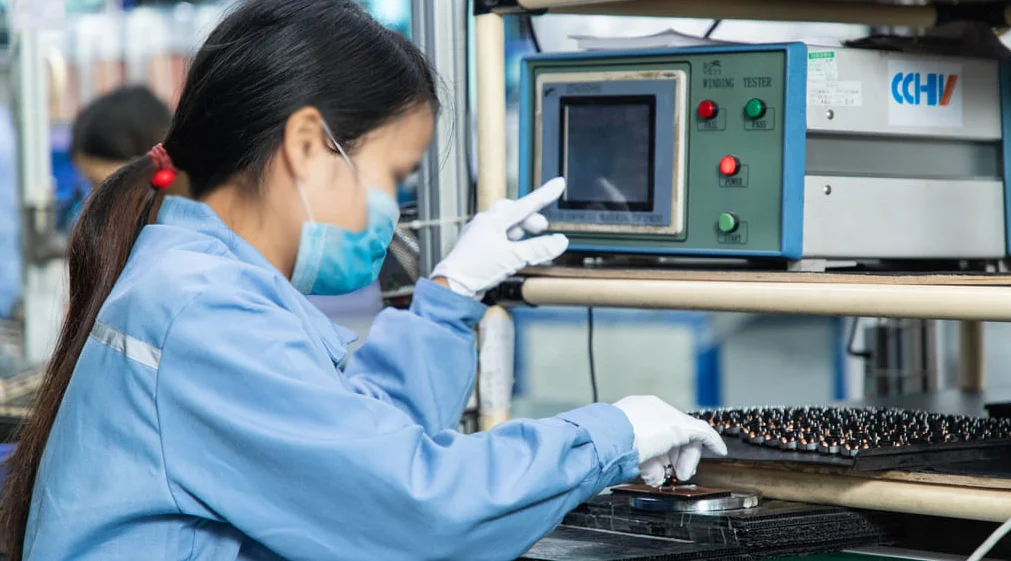

4. Performance Test
After burn-in, each fan is tested for:
Airflow (CFM) – wind tunnel or anemometer
Noise (dBA) – anechoic chamber
Current & power consumption
Speed (RPM) – tachometer
5. Dielectric Strength & Insulation Resistance
AC fans: 1500V AC / 1min. DC fans: 500V AC / 1min. No breakdown allowed.
6. Final Visual & Packaging Check
Label accuracy, connector condition, wire length, and packaging integrity are verified. Each unit receives a unique lot number for traceability.
Result: Less than 0.3% field failure rate. Every fan comes with a test report upon request.
FAQ of 24V 4010 Ball Bearing Fan
What does “4010” mean in a cooling fan?
40 = 40mm frame length and width. 10 = 10mm thickness. It’s the standard metric notation for miniature fans. Other common sizes include 4020 (40x40x20mm), 6025 (60x60x25mm), and 9225 (92x92x25mm). The 4010 is one of the thinnest options, ideal for tight spaces like 1U servers, compact power supplies, and portable electronics. Thinner fans move less air but fit where others won’t.
Can I get this fan with PWM and tachometer (FG) signal?
Yes. Our LKD4010B-24H includes both PWM speed control and FG tacho output. PWM lets you adjust fan speed based on temperature – quieter at low loads, full speed when needed. FG tells your system the exact RPM so you can verify the fan is working. Other models can add these features as custom options. Lead time for PWM/FG customization: about 10-15 days for samples.
Is the 24V 4010 fan suitable for outdoor cabinets?
Yes – with conformal coating and IP56 protection. Standard fans are for indoor, clean environments. Outdoor use exposes fans to moisture, dust, and temperature swings. Conformal coating protects the PCB from corrosion. IP56 keeps dust and water jets out. Ball bearings handle wide temperatures better than sleeve bearings. LINKWELL offers all these options. Lead time for outdoor-ready 4010 fans: 15-20 days for samples.
What is the typical lead time for custom 24V 4010 fans?
Samples: 7-10 days. Mass production: 20-25 days after sample approval. Custom connector or cable? Add 2-3 days. Conformal coating or IP56? Add 3-5 days. Private label? First order takes 15-20 days for samples. Standard off-the-shelf models ship in 3-5 days. We quote realistic lead times and rarely miss them. Need faster? Talk to us – expedited service is sometimes available.
How long will a 24V 4010 ball bearing fan last?
Rated for 50,000 hours L10 at 25°C. That means 90% of fans will still be running at 50,000 hours. In real-world conditions – dust, heat, vibration – expect 30,000-50,000 hours. That’s still 3-5 years of continuous 24/7 operation. Sleeve bearing fans typically last half as long. Proper mounting, clean air, and staying within voltage specs all help maximize life. We use NSK and NMB bearings.
Ready to Solve Your Cooling Challenge
