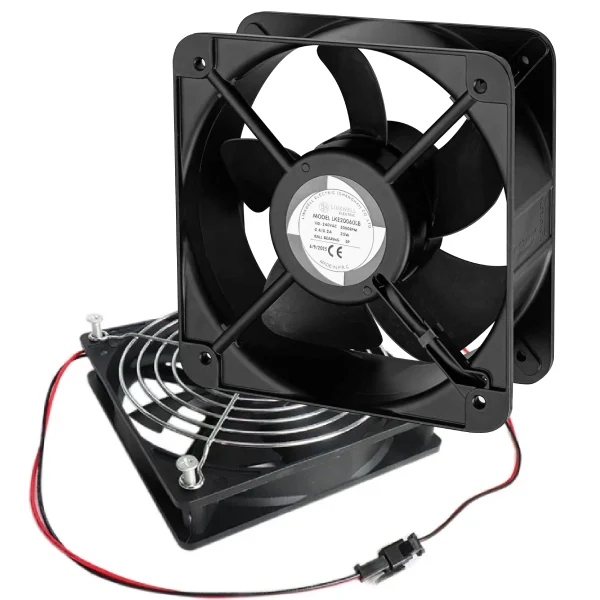

Reliable Cabinet Cooling Fan Supplier in China

Industrial Grade Heat Dissipation Solutions

High-airflow, low-noise, and long-lifespan axial fans designed for electrical enclosures, server racks, and control panels. UL/CE certified.

80-280mm

Size Range

110 V / 220 V

Voltage

–30°C ~ 80°C

Operation Temperature

50,000 hour

Service Life

Fan

Model

Size

(mm)

Voltage

(VAC)

Power

(W)

Speed

(RPM)

Airflow

(CFM)

LKA08025

80×80×25

110, 220

12/11

2500/2800

16.5/18.2

LKA08038

80×80×38

110, 220

13/12

2300/2500

47.6/56.1

LKA09225

92×92×25

110, 220

12/11

2350/2700

42.2/52.7

LKA11025

110×110×25

110, 220

12/11

2000/2200

41/45

LKA12025

120×120×25

110, 220

12/11

1800/2000

45/52.8

LKA12038-5

120×120×38

110, 220

19/18

2600/2900

77/82

LKA12038-7

120×120×38

110, 220

19/18

2500/2700

80/88

LKA13538

135×135×38

110, 220

20/18

2600/2800

86/95

LKA15051-5

150×150×51

110, 220

30/28

2700/3000

150/160

LKA15051-7

150×150×51

110, 220

32/30

2500/2600

175/185

LKA17238-M

172×150×38

220

30/29

2800/3300

184/225

LKA17251-5

172×150×51

110, 220

30/28

2700/3000

150/160

LKA17251-7

172×150×51

110, 220

32/30

2500/2600

175/185

LKA17252-M

172×172×52

220

40/39

2700/3200

233/281

LKA17255

172×162×55

110, 220

37/35

2800/3100

175/190

LKA18060

180×180×60

110, 220

42/40

2700/3000

260/290

LKA20060

202×202×60

110, 220

45/42

2600/2700

320/330

LKA20572

205×205×72

110, 220

60/80

2800/3200

630/680

LKA22060

220×60

110, 220

45/42

2600/2700

320/330

LKA22060-M

220×220×60

220

61/77

2550/2780

585/649

LKA22580

225×225×80

110, 220

55/65

2600/2800

500/545

LKA25489

254×89

110, 220

50/70

2550/2450

492/433

LKA25490

254×254×90

220

86/104

2660/3000

860/1003

LKA28080

280×280×80

110, 220

110/150

2550/2700

1015/1050

DC Fan Series

Fan

Model

Size

(mm)

Voltage

(VAC)

Power

(W)

Speed

(RPM)

Airflow

(CFM)

LK8025

80×80×25

12, 24, 48

0.96 – 3.00

2500 – 4000

26.67 – 44.05

LK8038-HP

80×80×38

12, 24, 48

2.88 – 21.60

4000 – 8000

46.54 – 102.23

LK9225

92×92×25

12, 24, 48

1.56 – 6.24

2500 – 4500

38.12 – 73.2

LK9238-HP

92×92×38

12, 24, 48

3.24 – 21.60

4000 – 7500

67.27 – 126.12

LK12025

120×120×25

12, 24, 48

1.80 – 7.20

2000 – 3500

60.23 – 105.4

LK12038

120×120×38

12, 24, 48

3.60 – 19.20

2500 – 4500

95.54 – 171.7

LK12038-HP

120×120×38

12, 24, 48

9.60 – 36.00

3500 – 5500

155.64 – 244.57

LK15050

150×150×50

12, 24, 48

13.20 – 42.24

3000 – 4500

220.94 – 311.41

LK17250

172×150×51

12, 24, 48

14.40 – 43.20

3000 – 4500

215.64 – 306.42

LK17250D

172×150×51

24, 48

156 – 245

6500 – 8000

490 – 605

LK20060

200×200×60

12, 24, 48

25.80 – 65.76

2500 – 3500

380.17 – 532.24

LK20572

205×205×72

12, 24, 48

57.6 – 120.0

2200 – 3300

531.3 – 798.3

LK22060

220×60

12, 24, 48

24.0 – 57.6

2000 – 3000

396.7 – 581.0

LK22580

225×225×80

12, 24, 48

57.6 – 120

2200 – 3300

533.5 – 806.0

LK25489

254×89

12, 24, 48

19.2 – 96

2000 – 3000

628.3 – 970.1

LK28080

280×280×80

12, 24, 48

57.6 – 168.0

2000 – 3000

790.1 – 1209.1

Fan

Model

Size

(mm)

Voltage

(VAC)

Power

(W)

Speed

(RPM)

Airflow

(CFM)

LKE6025

60×60×25

110~240

2, 4, 6

4000, 6000, 8000

14.1~28.7

LKE7025

70×70×25

110~240

2, 3, 4

2500, 3000, 3500

21.6~29.9

LKE8025

80×80×25

110~240

3, 4, 5

2400, 2800, 3200

26.3~35.2

LKE8038

80×80×38

110~240

3, 4, 6

2500, 3000, 3500

29.7~44.2

LKE9225

92×92×25

110~240

3, 5, 6

2000, 2500, 2800

30.1~42.1

LKE9238

92×92×38

110~240

4, 5, 7

2500, 3000, 3500

50.1~71.0

LKE12025

120×120×25

110~240

3, 4, 7

1800, 2200, 2600

55.6~79.6

LKE12038-7

120×120×38

110~240

6, 8, 12, 18

2500, 3000, 3500, 4000

110.7~170.6

LKE12038-5

120×120×38

110~240

6, 8, 12, 18

2500, 3000, 3500, 4000

79.3~125.0

LKE15051

150×150×51

110~240

16, 22, 35

2500, 3000, 3500

182.2~258.1

LKE17251-A

172×150×51

110~240

16, 22, 35

2500, 3000, 3500

177.4~253.9

LKE17251-B

172×51

110~240

16, 22, 35

2500, 3000, 3500

179.6~254.8

LKE20060

200×200×60

110~240

25, 45

2000, 2500

392.8~493.3

LKE20572

205×205×72

110~240

60, 95, 145

2500, 3000, 3600

602.7~851.7

LKE22060

220×60

110~240

25, 45

2000, 2500

396.6~490.8

LKE22580

225×225×80

110~240

60, 95, 145

2500, 3000, 3600

619.2~869.5

LKE25489

254×89

110/120~220/240

110, 115, 145

2000, 2500, 3200

628.3~981.6

LKE28080

280×280×80

110~240

45, 75, 145

2000, 2500, 3200

790.1~1225.7

Without proper cabinet cooling, your equipment is at risk

Electrical cabinets trap heat from VFDs, PLCs, and power supplies. In a sealed enclosure, temperature can rise 15–25°C above ambient, leading to unexpected downtime, component failure, and safety hazards.

Temperature vs. Reliability (Arrhenius Study)

Cabinet Internal Temp	Electronics Failure Rate	Recommended Fan Action
25°C – 35°C	Baseline	Standard axial fan
35°C – 45°C	2x higher	High-CFM fan
>45°C	5–10x higher	Forced cooling + filter fan

Engineered for Industrial Enclosures

Ball Bearing Engineering

NMB/NSK genuine ball bearings ensure 50,000 – 70,000 hours continuous operation in high-temp cabinets.

Environmental Protection (IP55-IP68)

Coated PCB and sealed motor against dust, moisture, and oil mist. Ideal for factory floors and outdoor NEMA enclosures.

Flame Retardant Materials

UL94V-0 rated plastic blades or die-cast aluminum. Prevents fire risk and meets global electrical codes.

EMC Compliance

Low electromagnetic interference for sensitive electronics inside control panels – stable signal transmission.

How We Ensure Every Fan Is Reliable

1. IQC

100% motor winding & bearing test before assembly

2. IPQC

Balance & noise check at 4 assembly checkpoints

3. Burn-in

48h aging test on random batch samples

4. OQC

Final visual & anti-static packing, 3-year record retention

Cabinet Cooling Applications

Industrial Control Panels

PLC cabinets, automation lines – prevent unexpected shutdowns with continuous airflow.

Telecom Racks & Data

24/7 cooling for base stations, edge servers, high-density telecom enclosures.

Inverters & UPS

Photovoltaic inverters, energy storage systems – high CFM for high power density.

NEMA Enclosures

Outdoor & industrial cabinets requiring IP55, IP66, or IP68 rated fans.

Why Choose FanACDC as Your Cabinet Cooling Fan Supplier?

Factory direct pricing – no middleman, cost advantage for OEM/ODM projects
Strict QC + global certs – UL, CE, RoHS, TUV compliant for global market access
Customization – shroud, finger guard, special connector, or IP rating
20+ years engineering – R&D team supporting tailored cabinet fan solutions

Certifications of Cabinet Cooling Fan Supplier in China

FAQ of Cabinet Cooling Fan Supplier in China

How do I calculate required CFM for my electrical cabinet?

Use this formula: CFM = (Heat load in Watts) / (1.08 × ΔT). Or simply send us your cabinet dimensions and internal heat sources – our engineers will recommend in 12h.

Exhaust vs intake fan for cabinet cooling?

Exhaust pulls hot air out (negative pressure), intake pushes cool air in (positive pressure). For dusty environments, use intake with filter; for general cabinets, exhaust is common.

Can you provide filter fan assemblies?

Yes, we supply fan + filter guard kits with IP54 rating for dust protection.

How do you handle warranty claims internationally?

12–24 months warranty. For defective fans, we provide replacement on next order or credit note. Video evidence is sufficient – no need to ship back small quantities.

Exhaust vs intake fan for cabinet cooling?

Exhaust pulls hot air out (negative pressure), intake pushes cool air in (positive pressure). For dusty environments, use intake with filter; for general cabinets, exhaust is common.

What is your MOQ for cabinet cooling fans?

Sample order from 1 piece. Bulk MOQ typically 100-500 pcs per model, and we accept mixed-model orders for distributors.

Ready to Solve Your Cooling Challenge

Contact our engineering and sales team for specifications, pricing, or a custom solution discussion.
