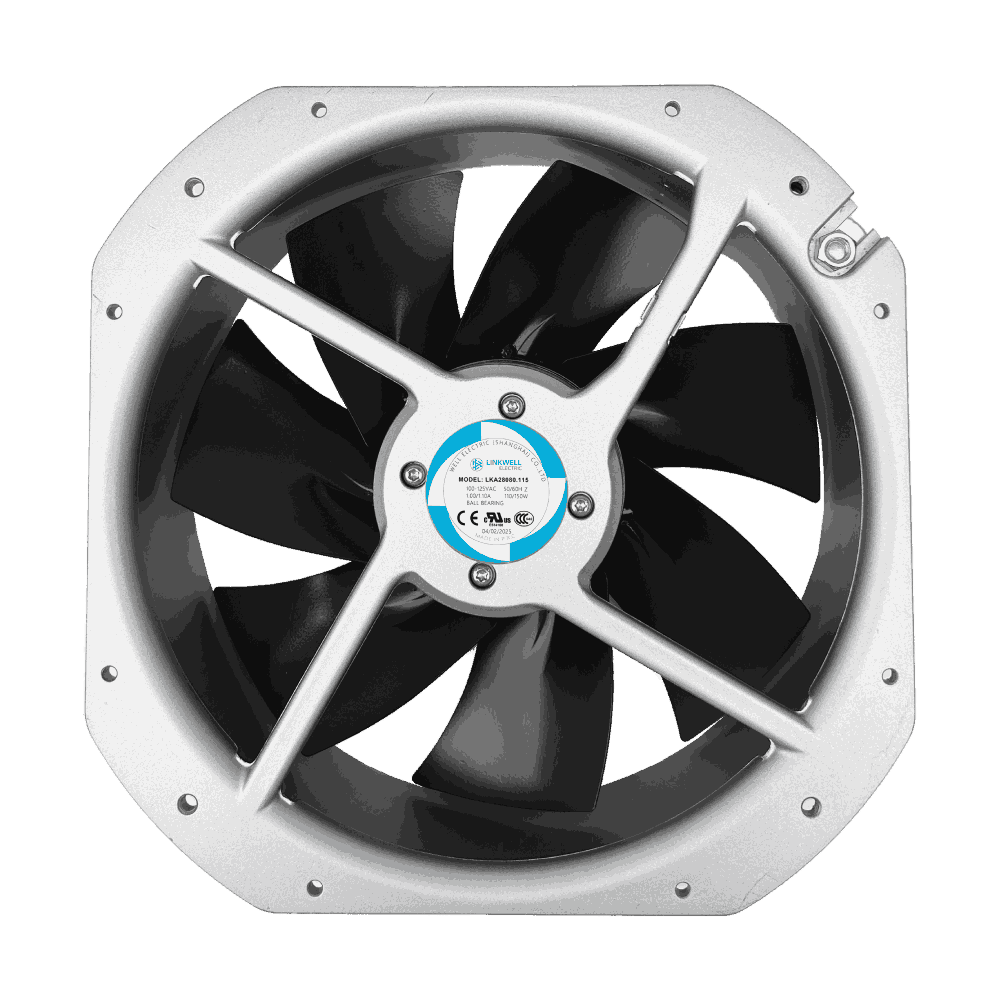

High Performance Radiator Cooling Fans Manufacturer
AC/DC/EC fans optimized for dense heat exchangers — deliver high static pressure, IP68 durability, and 50,000h continuous operation in generator sets, EV thermal systems, and industrial radiators.
- 300 Pa Max static pressure
- IP68 Protection rating
- 50k hrs MTBF
Radiator cooling challenges? We engineered the response.
Dense fin arrays, harsh environments, 24/7 operation – standard fans fail. LINKWELL’s high-performance series delivers measurable thermal headroom.
High Backpressure
High Static Pressure Radiators create resistance. Our centrifugal & axial fans maintain airflow at high backpressure (up to 300 Pa). No more stalled cooling.
- Curve-optimized impellers
- Up to 8000 RPM (DC series)
- Steep PQ curve for dense cores
Dust & Moisture
IP68 / Severe duty Engineered for off-highway, marine, and outdoor generator sets. IP68 certified, wide temp range -40°C ~ +85°C, salt-spray resistant.
- Sealed motor & electronics
- Corrosion coating optional
- Auto-reverse cleaning option
24/7 Reliability
50,000h Lifecycle Premium bearings, dual ball bearing system, over-voltage & thermal protection. Minimize downtime in critical infrastructure.
- Continuous operation rated
- EC/DC with PWM & alarm (FG/RD)
- 5-year warranty optional
Fan
Model
Size
(mm)
Voltage
(VAC)
Power
(W)
Speed
(RPM)
Airflow
(CFM)
Fan
Model
Size
(mm)
Voltage
(VAC)
Power
(W)
Speed
(RPM)
Airflow
(CFM)
Fan
Model
Size
(mm)
Voltage
(VAC)
Power
(W)
Speed
(RPM)
Airflow
(CFM)
Engineered for every radiator environment
| Application / Radiator Type | Recommended Fan Series | Key Performance (LINKWELL Advantage) | Customer Value |
|---|---|---|---|
| 🏭 Generator Sets & Industrial Radiators | AC Axial / Large DC Fans | Airflow up to 5000 CFM, IP54–IP68 protection, 50kHz EMC compliance | Prevents overheating shutdown and ensures continuous power output |
| 🚛 Heavy-Duty Trucks & Off-Highway Equipment | Brushless DC Fans (48V / 24V), IP68 Rated | Vibration-resistant design, reverse polarity protection, high starting torque | Improves engine and charge air cooler reliability in harsh environments |
| 🔋 EV Battery & Power Electronics Cooling | High-Speed DC Fans (Up to 8000 RPM) | PWM speed control, low noise operation, compact size (120–280mm) | Extends battery life and enhances thermal safety management |
| 💻 Server Racks / Liquid Cooling Radiators | EC Fans (PMBus Ready) | Up to 75% energy savings, tachometer output, active vibration control | Supports low PUE (<1.25) and precise thermal control for AI/data centers |
| ⚡ Solar Inverters & Industrial Drives | Centrifugal Fans / Backward Curved | Static pressure up to 300Pa, compact design, over-voltage protection | Ensures peak load stability and reduces thermal derating |
Certifications of High Performance Radiator Cooling Fans
20+ years of manufacturing excellence. Every fan passes rigorous thermal shock, salt spray, and life-cycle tests.
FAQ of Industrial Cooling Fans
What makes a fan suitable for radiator cooling instead of general ventilation?
Radiator cooling requires high static pressure, not just high airflow (CFM). Dense fin arrays create significant resistance (backpressure). Standard fans experience dramatic airflow drop under pressure, while LINKWELL fans are engineered with steep PQ curves to maintain airflow even at 150-300 Pa backpressure. Look for fans that publish full static pressure vs. airflow charts.
AC, DC, or EC fan – which one is best for my radiator application?
| Fan Type | Best For | Key Advantage |
|---|---|---|
| AC Fans | Industrial generators, stationary equipment, cost-sensitive projects | Direct mains connection, rugged, simple, 50,000h+ life |
| DC Fans | Mobile equipment, EVs, off-highway vehicles, battery-powered systems | Low voltage safety (12V/24V/48V), PWM speed control, IP68 available |
| EC Fans | Data center liquid cooling auxiliary radiators, premium energy-efficient systems | Up to 75% energy saving, PMBus communication, ultra-quiet |
What IP rating do I need for outdoor or dusty environments?
IP54: Protection against dust ingress and splashing water – suitable for sheltered outdoor installations.
IP55-IP56: Heavy dust resistance and powerful water jets – ideal for construction equipment, mining.
IP68: Continuous immersion protection (up to 1.5m for 30+ minutes) – required for off-highway vehicles, marine applications, or fans mounted low on mobile radiators.
How do I determine the correct fan size for my radiator?
Measure the available mounting footprint and core thickness. Common radiator fan sizes include:
Small radiators (ATV, motorcycle, small gensets): 92mm, 120mm fans
Medium radiators (automotive, compact equipment): 220mm, 250mm, 280mm fans
Large radiators (heavy trucks, industrial gensets, harvesters): 400mm, 500mm, 560mm fans or multiple fan arrays
Can you customize connectors, wiring length, and mounting brackets?
Yes – 100%. LINKWELL specializes in OEM/ODM customization:
Connectors: JST, Molex, Deutsch, TE, waterproof IP68 connectors, or bare wires
Cable length: Custom from 150mm to 2000mm
Mounting: Custom flanges, brackets, or rubber isolation mounts
Speed signals: FG (frequency generator) or RD (rotation detection) available
Thermal protection: Built-in thermistor or external thermostat control
