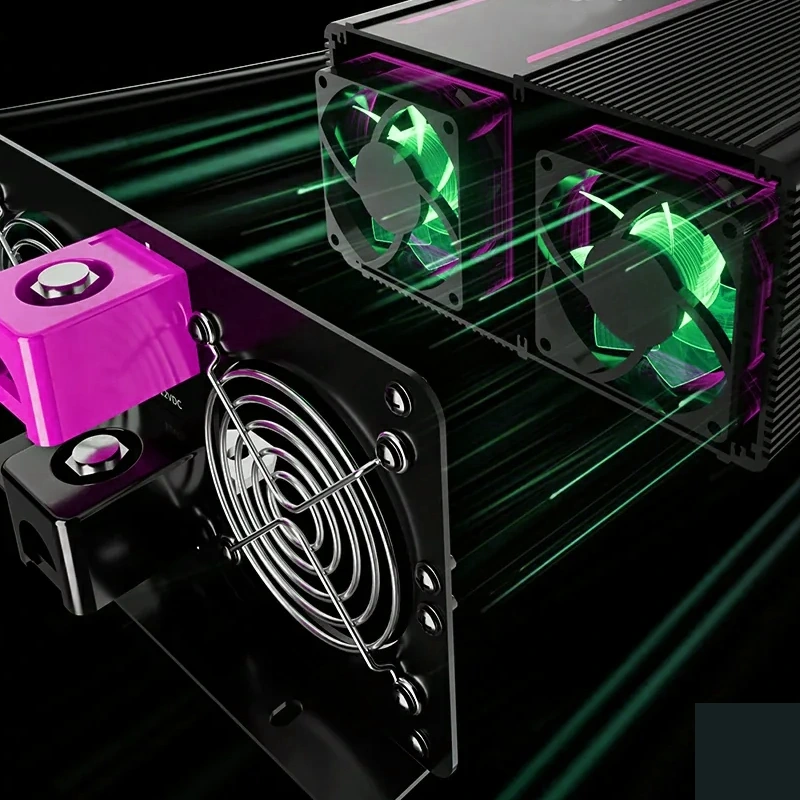

Inverter Cooling Fan Manufacture
Engineered to protect your critical power electronics from overheating in the most demanding industrial environments. Maximize reliability, efficiency, and lifespan of your inverters with our specialized cooling solutions.
EMI/RFI Protected
IP54/IP55 Rated
High-Temp Operation
Custom Configurations
Inverter Cooling Challenges & Our Solutions
Inverters generate significant heat in compact spaces. Without proper cooling, performance degrades and components fail prematurely.
High Heat Density
IGBTs and power modules in modern inverters generate intense heat in small areas, requiring targeted, high-efficiency cooling.
- High CFM fans
with optimized impeller designs for maximum airflow in constrained spaces
- Directional airflow
solutions to channel air directly over hot components
- Thermal interface materials
compatibility for enhanced heat transfer
Electromagnetic Interference
High-frequency switching in inverters creates EMI that can disrupt fan operation and other sensitive electronics.
- EMI-shielded motor designs
with optimized impeller designs for maximum airflow in constrained spaces
- RFI suppression circuits
integrated into fan controllers
- Conductive gaskets
and housing designs to contain electromagnetic emissions
Harsh Environments
Industrial settings expose cooling systems to dust, moisture, chemicals, and vibration that standard fans cannot withstand.
- IP54/IP55 rated housings
prevent ingress of dust and moisture
- Corrosion-resistant materials
and coatings for chemical environments
- Vibration-dampening mounts
and reinforced bearing systems
Product Series for Welding Applications
Choose the right fan technology for your inverter application based on performance, efficiency, and control requirements.
| Specification | AC Fans | DC Fans | EC Fans |
|---|---|---|---|
| Power Input | 100–240V AC | 12V / 24V / 48V DC | 100–240V AC or 24–48V DC |
| Speed Control | Voltage or Frequency | PWM or Voltage | Precise PWM / 0–10V |
| Efficiency | Medium | Medium–High | High (up to 80%) |
| Noise Level | Medium–High | Low–Medium | Low |
| Lifespan | 30,000–50,000 hours | 40,000–60,000 hours | 70,000+ hours |
| Best For | High-power industrial inverters, fixed-speed and cost-sensitive applications | Battery-powered inverters, telecom systems, DC power bus applications | High-efficiency solar inverters and intelligent thermal management systems |
AC Cooling Fan Supplier Product Specifications (110V / 115V / 220V / 230V)
110V AC cooling fan supplier/115V AC cooling fan supplier/220V AC cooling fan supplier/230V AC cooling fan supplier
Fan
Model
Size
(mm)
Voltage
(VAC)
Power
(W)
Speed
(RPM)
Airflow
(CFM)
| Category | Airflow Focus | Static Pressure Focus |
|---|---|---|
| 115v / 110v ac cooling fan | Stable airflow under rated voltage | Suitable for enclosed and semi-enclosed systems |
| 220v / 230v ac cooling fan | Consistent airflow for continuous operation | Reliable pressure for industrial environments |
| 120mm / 3 inch / 4 inch ac cooling fan | Size-matched airflow output | Balanced pressure for space-limited designs |
| 24v / 12v ac cooling fan | Controlled airflow in low-voltage systems | Optimized pressure for compact applications |
DC Fan Series
Fan
Model
Size
(mm)
Voltage
(VAC)
Power
(W)
Speed
(RPM)
Airflow
(CFM)
Fan
Model
Size
(mm)
Voltage
(VAC)
Power
(W)
Speed
(RPM)
Airflow
(CFM)
Application Areas
Our inverter cooling fans are deployed across multiple industries where power electronics reliability is critical.
Solar Inverters
High-efficiency EC fans for maximum energy yield and outdoor durability with IP55 protection.
Industrial Drives
Rugged AC/DC fans for motor drives and frequency converters in manufacturing environments.
UPS Systems
Reliable cooling for uninterruptible power supplies in data centers and critical infrastructure.
Welding Equipment
Dust-resistant fans for inverter-based welding machines in metal fabrication shops.
Inverter Cooling Fan Selection Guide
Use this guide to match your inverter requirements with the optimal cooling solution.
| Inverter Power Range | Recommended Fan Type | Typical Size | Key Features Required |
|---|---|---|---|
| < 3 kW | EC or DC Axial Fan | 40×40mm to 60×60mm | Low noise, PWM control, IP42 minimum |
| 3 – 10 kW | EC Axial Fan | 80×80mm to 92×92mm | IP54 protection, EMI shielding, speed sensing |
| 10 – 30 kW | EC or AC Axial Fan | 120×120mm to 150×150mm | IP55, high static pressure, dual ball bearings |
| 30 – 100 kW | Multiple EC Fans or AC Centrifugal | 120×120mm (multiple) or centrifugal blowers | Fan redundancy, thermal control, IP55 |
| > 100 kW | Custom AC Fan Arrays | Custom configurations | Forced air ducting, N+1 redundancy, IP56 |
Company Profile
With over 20 years of engineering expertise, LINKWELL is a trusted manufacturer of advanced cooling solutions
About LINKWELL
LINKWELL is a professional Inverter Cooling Fan supplier, providing high-performance thermal management solutions for inverters, industrial automation systems, power electronics, and heavy-duty equipment.
We offer a complete range of AC, DC, EC, and centrifugal fans specifically designed for inverter applications, ensuring stable airflow, efficient heat dissipation, and long-term operational reliability. As an industry-oriented manufacturer, we continuously develop advanced fan technologies to meet the stringent thermal demands of modern inverter systems.
Driven by innovation and quality, we provide professional OEM, ODM, and OBM services, delivering customized Inverter Cooling Fan solutions tailored to different inverter topologies, power ratings, and application environments.
- ISO9001 Certified
- RoHS Compliant
- CE Certified
- ISO14001 Certified
- UL Certified
- TÜV Certified
FAQ of Inverter Cooling Fan
What is the role of an inverter cooling fan in power electronics systems?
An inverter cooling fan removes heat generated by power modules, IGBTs, and capacitors during operation. Effective cooling maintains electrical stability, prevents thermal shutdown, and significantly extends the service life of inverter systems operating under continuous or high-load conditions.
Which fan types are commonly used for inverter cooling applications?
AC, DC, EC, and centrifugal fans are widely used for inverter cooling, depending on voltage availability, airflow requirements, noise limits, and efficiency targets. EC fans are increasingly preferred due to precise speed control and energy-saving capabilities.
How do I select the correct inverter cooling fan for my application?
Selection depends on inverter power rating, heat dissipation requirements, ambient temperature, enclosure design, airflow resistance, and operating environment. Factors such as fan size, static pressure, noise level, IP protection, and lifespan should also be carefully evaluated.
Why is fan reliability critical in inverter systems?
Inverter failure often results from excessive heat buildup. A reliable cooling fan ensures continuous airflow, protects sensitive electronic components, reduces maintenance frequency, and minimizes downtime, especially in industrial, renewable energy, and mission-critical power applications.
Can inverter cooling fans be customized for different inverter designs?
Yes. Inverter cooling fans can be customized in dimensions, voltage, airflow, bearing type, speed control method, connectors, and mounting structure to match specific inverter layouts and thermal management requirements.
