AC Axial Fan LKA08025

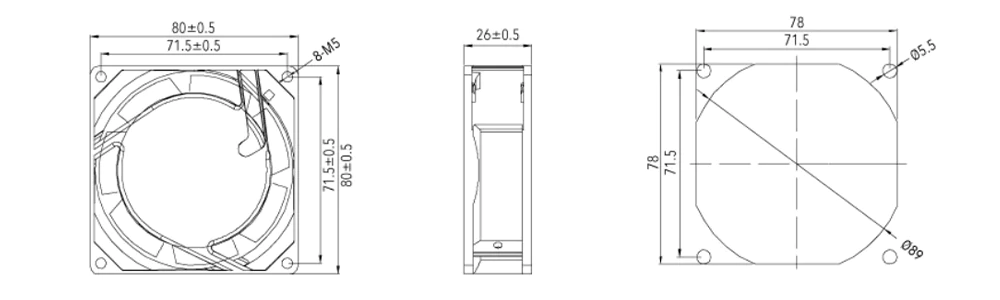

80×80×25mm

Motor structure: Shaded pole motor

Dielectric strength: AC 1500V, at 0.5mA, 50/60Hz

Insulation level: Class A

Material: Fan blade: PBT, 7 impeller

Bearing: Ball

Motor life: 50000 hours

Model	Voltage	Freq.	Current	Power	Speed	Air Volume	Max. Air Flow	Noise
	V	Hz	A	W	RPM	m³/h	CFM	dB
LKA08025-115	100/125	50/60	0.12/0.11	12/11	2500/2800	28/30.9	16.5/18.2	26/28
LKA08025-230	200/240	50/60	0.07/0.06	12/11	2500/2800	28/30.9	16.5/18.2	26/28
