AC Axial Fan LKA08038

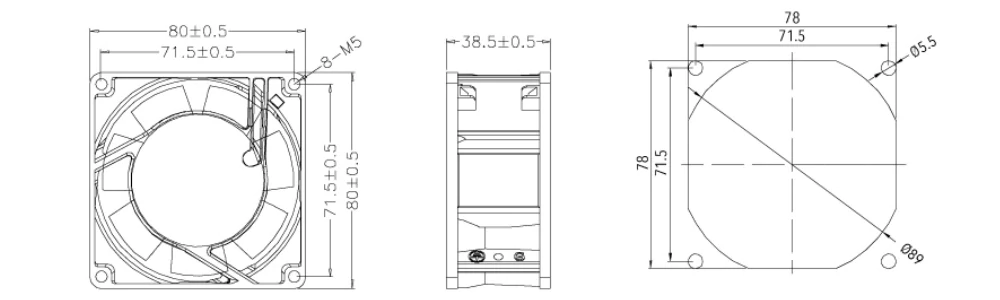

80×80×38mm

Motor structure: Shaded pole motor

Dielectric strength: AC 1500V, at 0.5mA, 50/60Hz

Insulation level: Class A

Material: Fan blade: PBT, 7 impeller

Bearing: Ball

Motor life: 50000 hours

Model	Voltage	Freq.	Current	Power	Speed	Air Volume	Max. Air Flow	Noise
	V	Hz	A	W	RPM	m³/h	CFM	dB
LKA08038-115	100/125	50/60	0.16/0.14	13/12	2300/2500	47.6/56.1	28/33	28/33
LKA08038-230	200/240	50/60	0.10/0.08	13/12	2300/2500	47.6/56.1	28/33	28/33
