AC Axial Fan LKA12038 5 Impeller

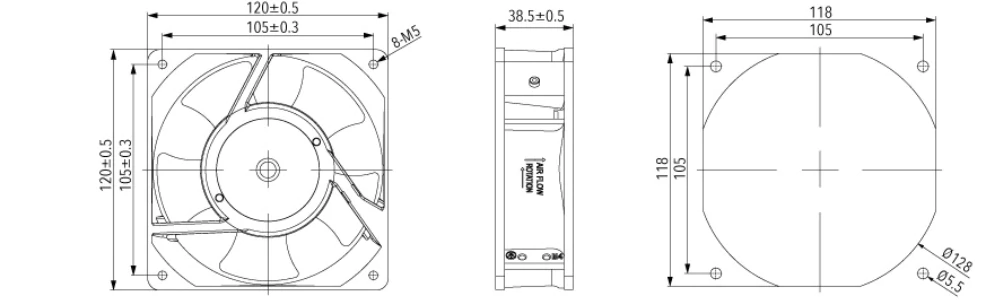

120×120×38mm

Motor structure: Shaded pole motor

Dielectric strength: AC 1500V, at 0.5mA, 50/60Hz

Insulation level: Class A

Material: Fan blade: PBT, 5 impeller

Bearing: Ball

Motor life: 50000 hours

Model	Voltage	Freq.	Current	Power	Speed	Air Volume	Max. Air Flow	Noise
	V	Hz	A	W	RPM	m³/h	CFM	dB
LKA12038-115	100/125	50/60	0.24/0.22	19/18	2600/2900	130.9/139.4	77/82	42/44
LKA12038-230	200/240	50/60	0.12/0.11	19/18	2600/2900	130.9/139.4	77/82	42/44
