AC Axial Fan LKA17238-M

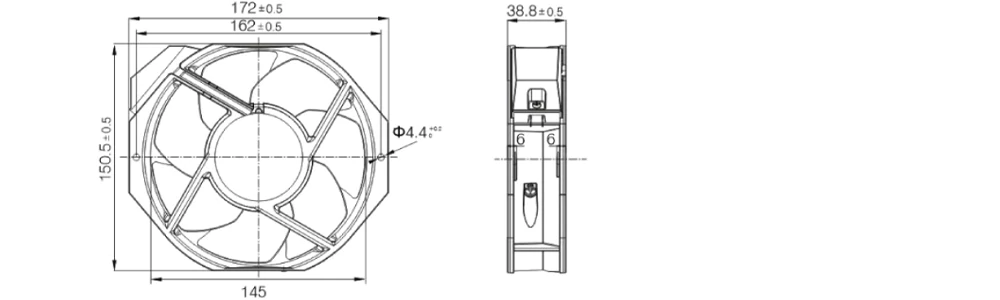

172×150×38mm

Motor structure: Motor with external rotor inducted by a running capacitor

Dielectric strength: AC 1500V, at 0.5mA, 50/60Hz

Insulation level: Class F

Material: Cold rolled plate, 7 impeller

Bearing: Ball

Motor life: 50000 hours

Model	Voltage	Freq.	Current	Power	Speed	Air Volume	Max. Air Flow	Noise
	V	Hz	A	W	RPM	m³/h	CFM	dB
LKA17238-M	230	50/60	0.13/0.125	30/29	2800/3300	314/382	184/225	51/55
