AC Axial Fan LKA17251 5 Impeller

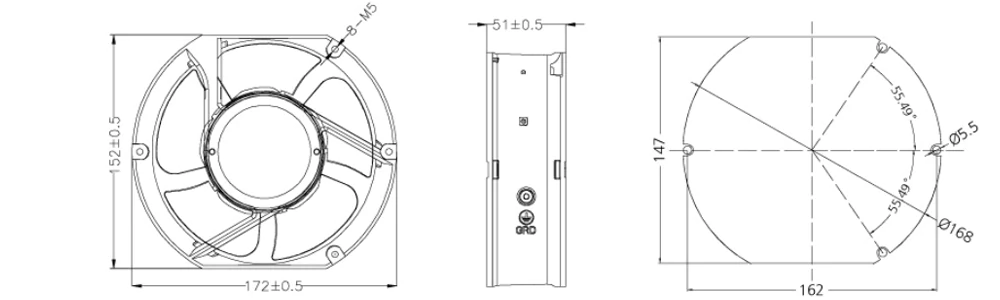

172×150×51mm

Motor structure: Shaded pole motor

Dielectric strength: AC 1500V, at 0.5mA, 50/60Hz

Insulation level: Class A

Material: Fan blade: PBT, 5 impeller

Bearing: Ball

Motor life: 50000 hours

Model	Voltage	Freq.	Current	Power	Speed	Air Volume	Max. Air Flow	Noise
	V	Hz	A	W	RPM	m³/h	CFM	dB
LKA17251-115	100/125	50/60	0.45/0.42	30/28	2700/3000	255/272	150/160	53/59
LKA17251-230	200/240	50/60	0.24/0.22	30/28	2700/3000	255/272	150/160	53/59
