AC Axial Fan LKA17252-M

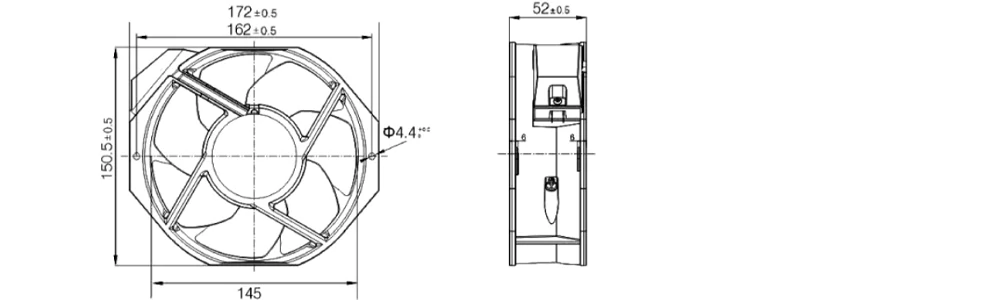

172×172×52mm

Motor structure: Motor with external rotor inducted by a running capacitor

Dielectric strength: AC 1500V, at 0.5mA, 50/60Hz

Insulation level: Class F

Material: Cold rolled plate, 7 impeller

Bearing: Ball

Motor life: 50000 hours

Model	Voltage	Freq.	Current	Power	Speed	Air Volume	Max. Air Flow	Noise
	V	Hz	A	W	RPM	m³/h	CFM	dB
LKA17252-M	230	50/60	0.17/0.17	40/39	2700/3200	398/478	233/281	53/57
