AC Axial Fan LKA22060-M

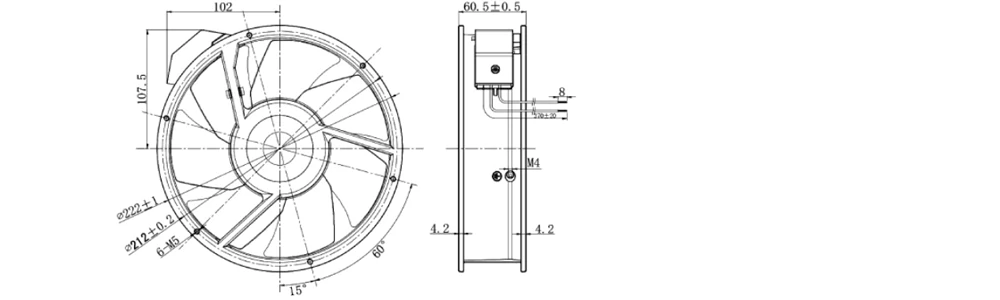

220×220×60mm

Motor structure: Motor with external rotor inducted by a running capacitor

Dielectric strength: AC 1500V, at 0.5mA, 50/60Hz

Insulation level: Class F

Material: Cold rolled plate, 7 impeller

Bearing: Ball

Motor life: 50000 hours

Model	Voltage	Freq.	Current	Power	Speed	Air Volume	Max. Air Flow	Noise
	V	Hz	A	W	RPM	m³/h	CFM	dB
LKA22060-M	230	50/60	0.28/0.33	61/77	2550/2780	990/1100	585/649	62/66
