AC Axial Fan LKA22580

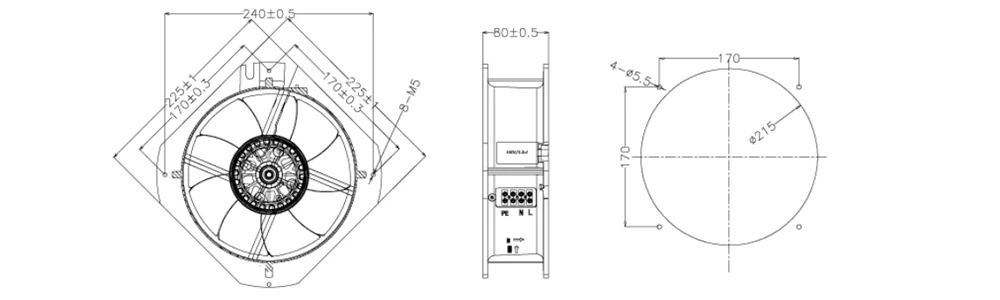

225×225×80mm

Motor structure: Shaded pole motor

Dielectric strength: AC 1500V, at 0.5mA, 50/60Hz

Insulation level: Class A

Material: Fan blade: Cold rolled plate, 9 impeller

Bearing: Ball

Motor life: 50000 hours

Model	Voltage	Freq.	Current	Power	Speed	Air Volume	Max. Air Flow	Noise
	V	Hz	A	W	RPM	m³/h	CFM	dB
LKA22580-115	100/125	50/60	0.55/0.65	55/65	2600/2800	850/926.5	500/545	59/61
LKA22580-230	200/240	50/60	0.30/0.35	55/65	2600/2800	850/926.5	500/545	59/61
