The Trusted Source for Durable Cooling Fans
Bearings: Ball bearings
Material: Impeller & Frame: Plastic(UL94-V0)
Lead Wire: UL Type
Working temperature: -10℃~70℃
Insulation level: Class B
Weight: 2000g

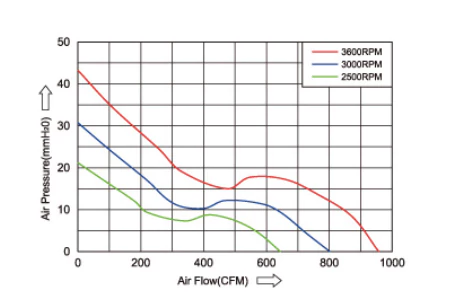

| Model | Voltage | Current | Frequency | Operation Voltage | Power | Speed | Air Pressure | Air Volume | Noise |
|---|---|---|---|---|---|---|---|---|---|
| V | A | Hz | VAC | W | RPM | mmH₂O | CFM | dB | |
| LKE22580HB | 110/240 | 2.02/1.10 | 50/60 | 90/265 | 145 | 3600 | 43.6 | 869.5 | 63 |
| LKE22580MB | 110/240 | 1.60/0.80 | 95 | 3000 | 32.2 | 730.8 | 58 | ||
| LKE22580LB | 110/240 | 1.00/0.50 | 60 | 2500 | 22.3 | 619.2 | 54 |
