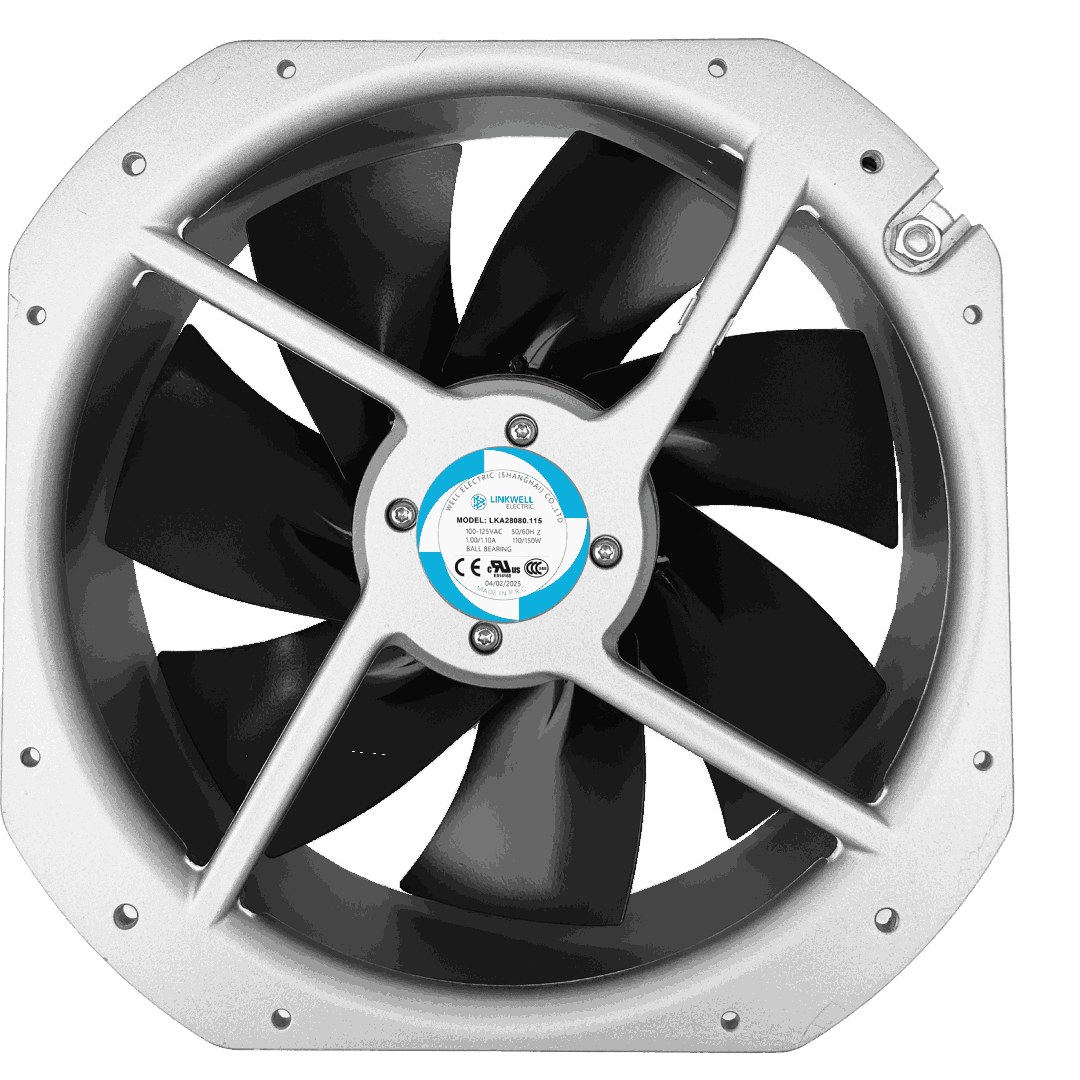

Transformer Cooling Fans Manufacturers Specialized Solutions for Power Systems

LINKWELL delivers high‑reliability AC, DC, and EC fans engineered to combat overheating, extend transformer life, and ensure grid stability — backed by 20+ years of manufacturing excellence.

Critical Cooling Challenges in Modern Transformers

Transformers are the backbone of power distribution, yet they face severe thermal stress daily. Without effective cooling, performance degrades rapidly.

High Temperature & Overload

Continuous operation at peak loads increases winding hot-spot temperatures. Every 10°C rise above rated limits halves insulation life, leading to premature failure.

Efficiency Degradation

Heat raises copper and core losses, reducing transformer efficiency by up to 15–20%. Poor thermal management directly impacts operational costs.

Aging Infrastructure

Many substations rely on outdated fan systems with low MTBF. Unplanned downtime costs thousands per hour in industrial & utility environments.

Harsh Environments

Outdoor transformers face dust, moisture, salt, and extreme temperatures. Standard fans fail quickly without proper IP protection and robust construction.

Fan Technologies Optimized for Transformers

LINKWELL offers tailored airflow solutions — from high‑pressure centrifugal designs to energy‑saving EC fans.

Axial AC/DC Fans

High airflow volume, ideal for radiator banks and large surface cooling. Available in 12V–48V DC or 110V–230V AC, with IP54–IP68 protection.

Centrifugal (Radial) Fans

Generate high static pressure up to 300Pa, perfect for ducted cooling or confined spaces. Backward curved blades ensure non‑overloading and low noise.

EC Fans (Electronically Commutated)

Up to 75% energy savings vs traditional AC fans. Integrated speed control enables dynamic cooling based on oil/winding temperature.

High IP & Corrosion‑resistant

Stainless steel frames, sealed leads, and IP68 rating ensure survival in substations, coastal areas, and dusty industrial yards.

How LINKWELL Solves Transformer Overheating

Factory‑direct engineering, certified reliability, and real‑world performance data.

50,000+ hrs

MTBF (ball bearing)

Continuous operation @ 40°C

IP68

Dust‑tight & immersion

Submersible protection

75%

Energy savings

EC fan vs. AC equivalent

300 Pa

Static pressure (centrifugal)

High resistance systems

AC Cooling Fan Supplier Product Specifications (110V / 115V / 220V / 230V)

110V AC cooling fan supplier/115V AC cooling fan supplier/220V AC cooling fan supplier/230V AC cooling fan supplier

Fan

Model

Size

(mm)

Voltage

(VAC)

Power

(W)

Speed

(RPM)

Airflow

(CFM)

LKA08025

80×80×25

110, 220

12/11

2500/2800

16.5/18.2

LKA08038

80×80×38

110, 220

13/12

2300/2500

47.6/56.1

LKA09225

92×92×25

110, 220

12/11

2350/2700

42.2/52.7

LKA11025

110×110×25

110, 220

12/11

2000/2200

41/45

LKA12025

120×120×25

110, 220

12/11

1800/2000

45/52.8

LKA12038-5

120×120×38

110, 220

19/18

2600/2900

77/82

LKA12038-7

120×120×38

110, 220

19/18

2500/2700

80/88

LKA13538

135×135×38

110, 220

20/18

2600/2800

86/95

LKA15051-5

150×150×51

110, 220

30/28

2700/3000

150/160

LKA15051-7

150×150×51

110, 220

32/30

2500/2600

175/185

LKA17238-M

172×150×38

220

30/29

2800/3300

184/225

LKA17251-5

172×150×51

110, 220

30/28

2700/3000

150/160

LKA17251-7

172×150×51

110, 220

32/30

2500/2600

175/185

LKA17252-M

172×172×52

220

40/39

2700/3200

233/281

LKA17255

172×162×55

110, 220

37/35

2800/3100

175/190

LKA18060

180×180×60

110, 220

42/40

2700/3000

260/290

LKA20060

202×202×60

110, 220

45/42

2600/2700

320/330

LKA20572

205×205×72

110, 220

60/80

2800/3200

630/680

LKA22060

220×60

110, 220

45/42

2600/2700

320/330

LKA22060-M

220×220×60

220

61/77

2550/2780

585/649

LKA22580

225×225×80

110, 220

55/65

2600/2800

500/545

LKA25489

254×89

110, 220

50/70

2550/2450

492/433

LKA25490

254×254×90

220

86/104

2660/3000

860/1003

LKA28080

280×280×80

110, 220

110/150

2550/2700

1015/1050

DC Fan Series

Fan

Model

Size

(mm)

Voltage

(VAC)

Power

(W)

Speed

(RPM)

Airflow

(CFM)

LK8025

80×80×25

12, 24, 48

0.96 – 3.00

2500 – 4000

26.67 – 44.05

LK8038-HP

80×80×38

12, 24, 48

2.88 – 21.60

4000 – 8000

46.54 – 102.23

LK9225

92×92×25

12, 24, 48

1.56 – 6.24

2500 – 4500

38.12 – 73.2

LK9238-HP

92×92×38

12, 24, 48

3.24 – 21.60

4000 – 7500

67.27 – 126.12

LK12025

120×120×25

12, 24, 48

1.80 – 7.20

2000 – 3500

60.23 – 105.4

LK12038

120×120×38

12, 24, 48

3.60 – 19.20

2500 – 4500

95.54 – 171.7

LK12038-HP

120×120×38

12, 24, 48

9.60 – 36.00

3500 – 5500

155.64 – 244.57

LK15050

150×150×50

12, 24, 48

13.20 – 42.24

3000 – 4500

220.94 – 311.41

LK17250

172×150×51

12, 24, 48

14.40 – 43.20

3000 – 4500

215.64 – 306.42

LK17250D

172×150×51

24, 48

156 – 245

6500 – 8000

490 – 605

LK20060

200×200×60

12, 24, 48

25.80 – 65.76

2500 – 3500

380.17 – 532.24

LK20572

205×205×72

12, 24, 48

57.6 – 120.0

2200 – 3300

531.3 – 798.3

LK22060

220×60

12, 24, 48

24.0 – 57.6

2000 – 3000

396.7 – 581.0

LK22580

225×225×80

12, 24, 48

57.6 – 120

2200 – 3300

533.5 – 806.0

LK25489

254×89

12, 24, 48

19.2 – 96

2000 – 3000

628.3 – 970.1

LK28080

280×280×80

12, 24, 48

57.6 – 168.0

2000 – 3000

790.1 – 1209.1

Fan

Model

Size

(mm)

Voltage

(VAC)

Power

(W)

Speed

(RPM)

Airflow

(CFM)

LKE6025

60×60×25

110~240

2, 4, 6

4000, 6000, 8000

14.1~28.7

LKE7025

70×70×25

110~240

2, 3, 4

2500, 3000, 3500

21.6~29.9

LKE8025

80×80×25

110~240

3, 4, 5

2400, 2800, 3200

26.3~35.2

LKE8038

80×80×38

110~240

3, 4, 6

2500, 3000, 3500

29.7~44.2

LKE9225

92×92×25

110~240

3, 5, 6

2000, 2500, 2800

30.1~42.1

LKE9238

92×92×38

110~240

4, 5, 7

2500, 3000, 3500

50.1~71.0

LKE12025

120×120×25

110~240

3, 4, 7

1800, 2200, 2600

55.6~79.6

LKE12038-7

120×120×38

110~240

6, 8, 12, 18

2500, 3000, 3500, 4000

110.7~170.6

LKE12038-5

120×120×38

110~240

6, 8, 12, 18

2500, 3000, 3500, 4000

79.3~125.0

LKE15051

150×150×51

110~240

16, 22, 35

2500, 3000, 3500

182.2~258.1

LKE17251-A

172×150×51

110~240

16, 22, 35

2500, 3000, 3500

177.4~253.9

LKE17251-B

172×51

110~240

16, 22, 35

2500, 3000, 3500

179.6~254.8

LKE20060

200×200×60

110~240

25, 45

2000, 2500

392.8~493.3

LKE20572

205×205×72

110~240

60, 95, 145

2500, 3000, 3600

602.7~851.7

LKE22060

220×60

110~240

25, 45

2000, 2500

396.6~490.8

LKE22580

225×225×80

110~240

60, 95, 145

2500, 3000, 3600

619.2~869.5

LKE25489

254×89

110/120~220/240

110, 115, 145

2000, 2500, 3200

628.3~981.6

LKE28080

280×280×80

110~240

45, 75, 145

2000, 2500, 3200

790.1~1225.7

Certified Quality & Global Compliance

Custom Engineering for Unique Transformer Designs

We don’t just sell fans – we co‑develop thermal solutions. OEM/ODM/OBM services from concept to mass production.

Mechanical customization

Custom mounting flanges, terminal boxes, lead lengths, and impeller materials (metal/plastic) to fit existing transformer radiators.

Electrical & control

Integrate temperature sensors, tachometer output, PWM speed control, or alarm signals for automated transformer cooling management.

Coating & protection

Corrosion‑resistant coating (C5‑M), tropicalized, or high‑salt fog protection for offshore wind transformers and coastal substations.

How to Select the Right Transformer Cooling Fan

Follow our 4‑step framework to match fan performance with your transformer thermal requirements.

1. Calculate heat load

Estimate losses (copper + iron) in watts. For every 100W, you need approx. 35‑40 CFM at nominal pressure.

2. Define static pressure

Radiator fins, filters, or duct length increase resistance. Use centrifugal fans for pressure > 100 Pa.

3. Voltage & environment

Outdoor/IP68 = sealed DC/AC. Indoor/IP54 = standard. Choose 110V/230V AC or 24/48V DC depending on site supply.

4. Control & monitoring

EC fans with temperature feedback save energy; optional tach output for predictive maintenance.

Why Power Engineers Choose LINKWELL

We combine manufacturing depth, application expertise, and a customer‑first approach.

Factory direct pricing

No intermediaries – you get competitive costs with full traceability and quality control from our ISO‑certified facility.

Short lead times

Standard fans ship in 7‑15 days; custom orders typically 20‑30 days. Emergency stocking available for large projects.

Global project references

Over 200 transformer cooling installations across North America, Europe, Middle East, and SE Asia.

Dedicated support

Application engineers assist with selection, CFD analysis, and after‑sales maintenance plans.

FAQ of Transformer Cooling Fans Manufacturers

Can I retrofit EC fans into existing transformer cooling banks?

Yes. Our EC fans are form‑fit compatible with most AC fan frames. You’ll gain energy savings and finer speed control without major modifications.

What IP rating is needed for outdoor substations?

IP55 minimum, but we strongly recommend IP68 for areas with flooding, heavy rain, or dust storms. All LINKWELL IP68 fans are fully sealed.

How do you ensure fan reliability for 24/7 operation?

We use dual ball bearings, Class F/H insulation, and 100% burn‑in testing. Our MTBF exceeds 50,000 hours at 40°C ambient.

Do you offer vibration‑resistant models for traction transformers?

Absolutely. We provide enhanced mounting and shock‑resistant designs for railway and mobile transformer applications.

Ready to Solve Your Cooling Challenge
