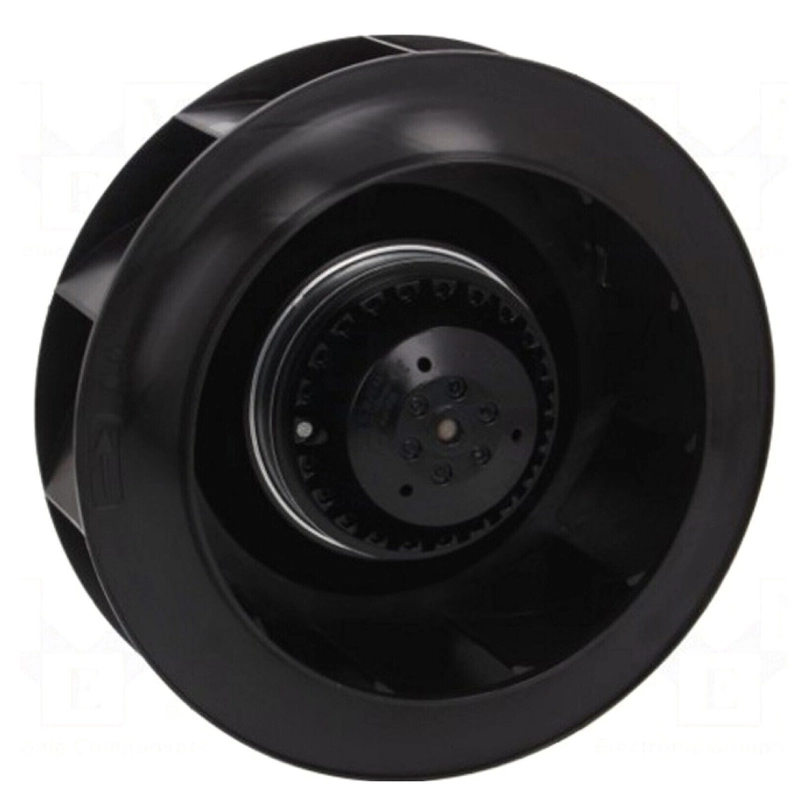

133mm Centrifugal Fan Manufacturer
High-static pressure 133mm centrifugal blower — purpose-built for electrical cabinets, telecom shelters, inverters, and industrial control systems.
- OEM / ODM
- Ball Bearing
- Fast Sample Support
Product Overview: 133mm Centrifugal Fan / Blower
A centrifugal fan (also known as a radial blower) draws air axially into the impeller and discharges it perpendicularly, generating significantly higher static pressure than axial fans. This makes it the ideal choice for equipment cooling with restricted airflow paths, high component density, or long duct runs.
Fan
Model
Size
(mm)
Voltage
(VAC)
Power
(W)
Speed
(RPM)
Airflow
(CFM)
Why industrial equipment relies on centrifugal fans: Our 133mm size offers the perfect balance between compact footprint (133mm frame) and powerful airflow up to 150 CFM. Unlike conventional axial fans that struggle against backpressure, our centrifugal series maintains stable cooling performance inside crowded cabinets, power supplies, and telecom shelters. For engineers seeking reliability under 24/7 operation, our ball-bearing design and thermal protection ensure longevity.
Full OEM / ODM Customization Services
Engineers & procurement teams — compare core parameters for your thermal management project.
Size Range
133 x 133 x 38 mm
Voltage Options
12V / 24V / 48V DC
Airflow
80 ~ 150 CFM
Static Pressure
Up to 1.2 inH₂O (300 Pa)
Speed
2500 ~ 4500 RPM
Noise Level
38 ~ 55 dBA
Bearing Type
Dual Ball Bearing
Service Life
70,000 hrs (L10 at 40°C)
Operating Temp
-40°C ~ +80°C
IP Rating
IP54 / IP55 (optional)
Engineering Advantages: Why Choose Our 133mm Centrifugal Fan
Higher static pressure for restricted airflow paths
Overcome dense heatsinks, filters, and narrow chassis — outperforms axial fans in pressure-demanding applications.
Reliable operation for cabinet & equipment cooling
Continuous duty rated, designed for 24/7 industrial environments without performance decay.
Double ball bearing for longer service life
Japanese precision ball bearings reduce friction and extend MTBF, field-proven reliability.
Thermal protection & industrial-grade insulation
Built-in auto-restart thermal cutoff and Class B insulation ensure safety under extreme loads.
Stable performance under continuous operation
Motor winding and impeller optimized for low vibration and consistent airflow > 50,000 hours.
Custom support: voltage, connector, and installation
Tailored wire harness, terminal types, mounting brackets, and speed control signals (PWM optional).
Applications That Demand 133mm Centrifugal Blower
From mission-critical telecom shelters to industrial drives — if your system needs high-pressure cooling, this fan fits.
- Electrical Cabinet Cooling
- Inverter & VFD Cooling
- Power Supply Equipment
- Telecom Cabinet Cooling
- Industrial Control Systems
- HVAC Control Units & Air Samplers
Tailored for Your Project: Customization Capabilities
Voltage & Frequency
12V/24V/48V, also 110V AC upon request
Wire Length & Connector
AWG22~26, custom terminals (Molex, JST, AMP)
Bearing Type
Dual ball, long-life, or hydraulic bearing options
Speed Control
PWM, voltage regulation, tachometer output
IP Protection
IP54, IP55, conformal coating on PCB
Mounting & Insulation
Custom brackets, silicone gaskets, class H insulation available
Certifications & Global Compliance
